CHEMICAL FEED PUMPS

PULSAFEEDER CHEM-TECH
SERIES 100 & 150 CHEMICAL FEED PUMPS
FEATURES

Versatility: Range of models, offering feed rates from 3 GPD to 100 GPD at operating pressures up to 100 PSI.
Low Maintenance: Lifetime lubricated, sealed, self maintaining gear train.
Reliability: Four ball valve design for trouble-free operation.
Durability: Strong, chemical resistant, flame retardant housing.
Long Life: Metal reinforced, short stroke diaphragm.
Simple Installation: Injection back pressure valve assembly enables injection at an angle and inhibits siphoning.
Bleed Valve Assembly: Aids in priming and relieves pressure from the discharge line.

SPECIFICATIONS

Maximum Viscosity: 300 Cp., consult factory or Chemical Resistance Guide for specific solutions, special
components and accessories.
Dimensions:
6 3/4" H x 8 7/8" W x 7 1/4" D (Series 100 & 150)
6 3/4" H x 12 5/16" W x 7 1/4" D (Series 100D)
Temperature Limitations: 125°F / 51°C
Electrical Requirements: 1/60 HP, 115V/60cy; 230V/60cy and 230V/50 cycle available on request.
Shipping Weight:
8 lbs./3.63 kg. (Series 100 & 150)
12 lbs./5.4 kg. (Series 100D)
The Series 100D and 150D with
dual head assemblies are ideal for metering
two solutions at different outputs.

PULSAFEEDER CHEM-TECH
SERIES 200 CHEMICAL METERING PUMPS
FEATURES

Versatility: Range of models, offering feed rates from 10 GPD to 120 GPD at operating pressures up to 150 PSI.
Durability: Strong fibercore casing, and corrosion-resistant rubber and plastic solution handling components.
Long Life: Metal reinforced, short stroke diaphragm.
Reliability: Oil immersed gear train and heavy duty, fan-cooled motor with thermal overload protection.

SPECIFICATIONS

Maximum Viscosity: 300 Cp., consult factory or Chemical Resistance Guide for specific solutions, special
components and accessories.
Dimensions:
7 3/4"H x 7 1/4"W x 15 1/4"D
Temperature Limitations: 122°F / 50°C max.
Electrical Requirements: 1/20 HP, 115V/60 Hz; 230V/60 Hz or 230V/50 Hz

OPERATING ADVANTAGES

Easy-to-read, adjustable dial.
All wetted components, including diaphragm, are completely interchangeable between allmodels.
Heavy-duty design allows for continuous operation.

UNI-DOSE™ by LMI

Model U1 has dual manual controls for adjusting speed and stroke. Model U0, has single manual control to vary stroke.
Uni-Dose pumps are UL, SA, and NSF approved.

Versatile & Flexible: Available with single or dual output control for easy, accurate adjustment over the operating
range. Turndown ration up to 100:1 provides unmatched flexibility. Maximum ouput from 6 to 30 gallons per day at
80 psi.
Quiet: Advanced noise reductin virtually silences the pump, making it ideal for household applications..
Reliable: Totally enclosed, chemically resistant housings provide superior protection ineither indoor or outdoor
installations. Solid-state electronics are fully encapsulated to ensure long life. Superior Solenoid design provides
the power without the troublesome fans, open housings, motors and gears associated with motor driven pumps.
Safe: Inherent pressure relief stops the pump if the system backpressure exceeds the pump's strength.
Thermostatic protection prevents damage from overheating. Priming valve provides safe and easy priming without
having to disconnect tubing.
Advanced Valve Design: Each pump is equipped with four self cleaning Uni-Valves designed to maintain prime
while eliminating the scaling and clogging associated with ball valves.
Standard Accessories : Each Uni-Dose pump comes complete with a priming valve, an injection
check/backpressure valve, a foot valve and a suction tubing straightener. Heads and fittings are constructed of
high strength PVC.

The FIRST electronic metering pumps designed specifically for the water conditioning industry.

Maximum Pressure: 80 psi (5.5 bar) all models
Dimensions:

4.1" x 7.0" x 7.75"

Shipping Weight : 7 pounds
Electrical Requirements: Maximum 1.4 amps @ 120 VAC 1 Ø; also available as 120 VAC plug, 240 VAC US plug
(not for export), 220-240 VAC DIN plug, 240-250 VAC UK plug, 240-250 VAC Aust. NZ plug, or 220 VAC Swiss plug.

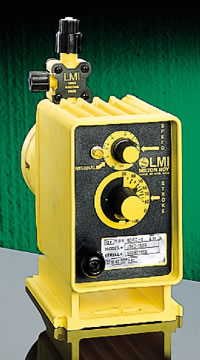

LMI SERIES A, B & C CHEMICAL METERING PUMPS
This series of pumps allows fully automatic operation and can be connected to a flow meter or other pacing device.

FEATURES

Adjustable stroke frequency and the flexibility of up to 1000:1 turndown ratio.
Manually adjustable stroke length provides accurate pump output adjustment.
NEMA 4X / IP65 enclosures for protection against corrosive environments.
Time tested electronics for reliable, repeatable performance.
Totally encapsulated electronics for protection against moisture and corrosive conditions.
Priming valves with Flourofilm™ diaphragms and ramp style knobs for "hands free" priming.
Rigid stroke bracket assembly for highly accurate and consistent dosing performance.
Advanced control options for simplified system integration (pulse multiply or divide, 4 - 20 mA, remote on/off).
5-level power control option to reduce system shock and extend the life of the pump.
External pacing for flow proportional applications.
Water King offers a wide selection of LMI liquid handling assemblies with flexible tubing and pipe thread
connections. Configurations for viscous chemicals and slurries provide total flexibility in all applications. Materials
available are PVC, PVDF, Acrylic, UHMWPE, PGC, Polypropylene, and 316 SS.

CHEMICAL SOLUTION TANKS

FEATURES

10 ST. The 10 ST solution tanks are manufactured with a tough, specially formulated resin that resists acids and
chemicals. These tanks will withstand stearn cleaning and sub-zero temperatures. They won't leak, dent or rust
and, because of their seamless construction, are virtually leak proof. These 10 ST tanks are NSF listed and feature
tight-fitting snap-on lids that lock odors in.
30 ST. The 30 ST solution tanks are constructed of a carefully balanced blend of tough polyethylene and
reinforcing asbestos mineral blue rock fiber. The mixture produces a chemically inert, temperature-resistant product
with and extremely high tensile strength. It will not corrode under the most adverse conditions and affords its user a
reliable yet inexpensive chemical container requiring virtually non maintenance.

SOLUTION TANK & STAND

FEATURES

Tank is corrosion resistant polypropylene.
Stand is welded stainless steel angle iron.
Includes bulkhead for easy mounting of pump.
Ideal for any treatment problem where introduction of chemical solution into water lines is indicated.
Chemical feed pump not included in assembly.

OTHER SIZES AND TYPES OF TANKS
AVAILABLE ON REQUEST.
